Measure a floor plan in 5 minutes
PlanTape reads an HDB floor-plan PDF, finds the rooms for you, and gives you floor area (m²) and internal wall perimeter (m) per room — ready for flooring and skirting quotes.

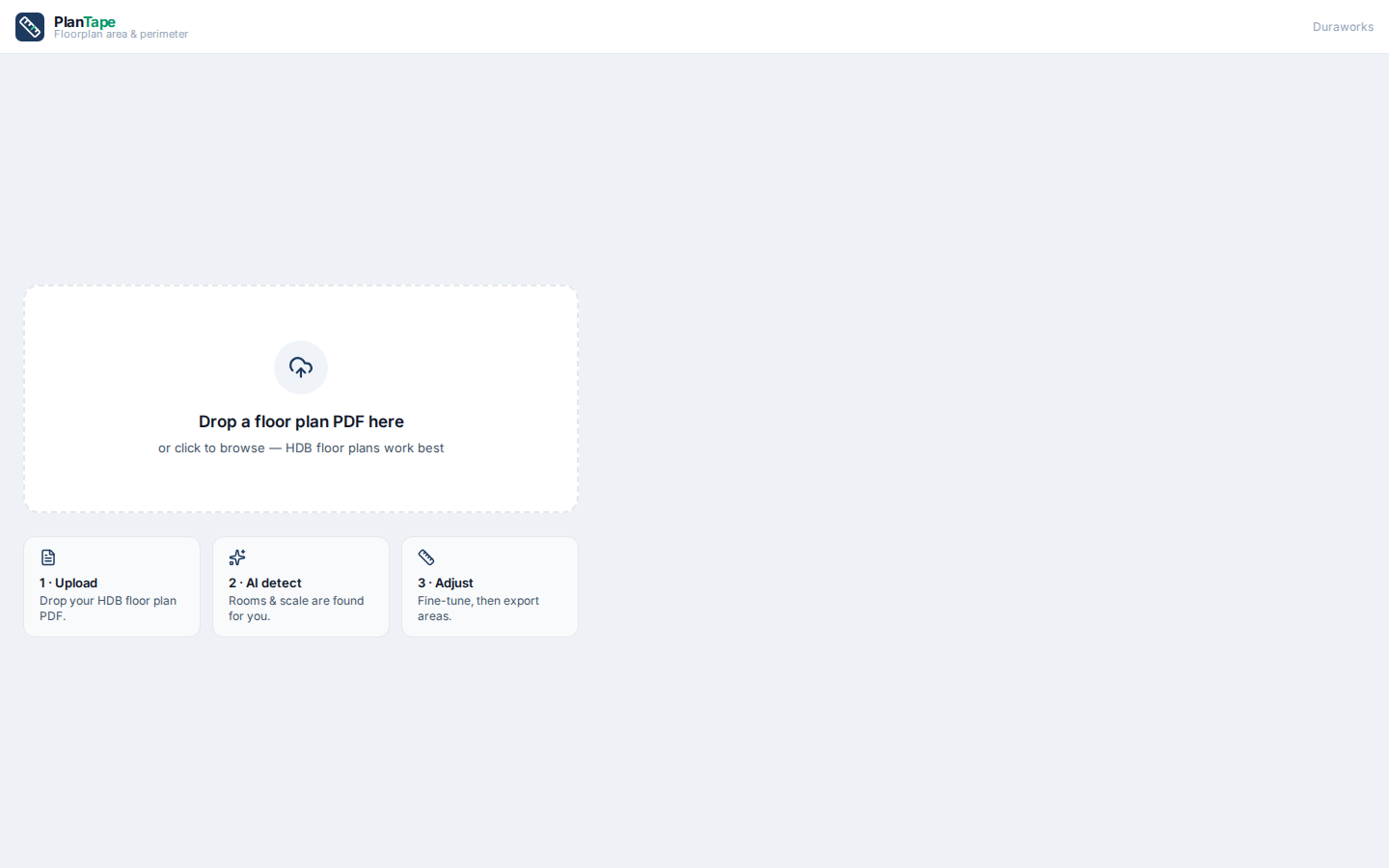

1Upload the floor plan
Drop the PDF anywhere on the upload box (or click it to browse). Original HDB floor plans work best — the kind with dimension numbers like 3000 printed around the walls.
2Let AI detect, then sanity-check

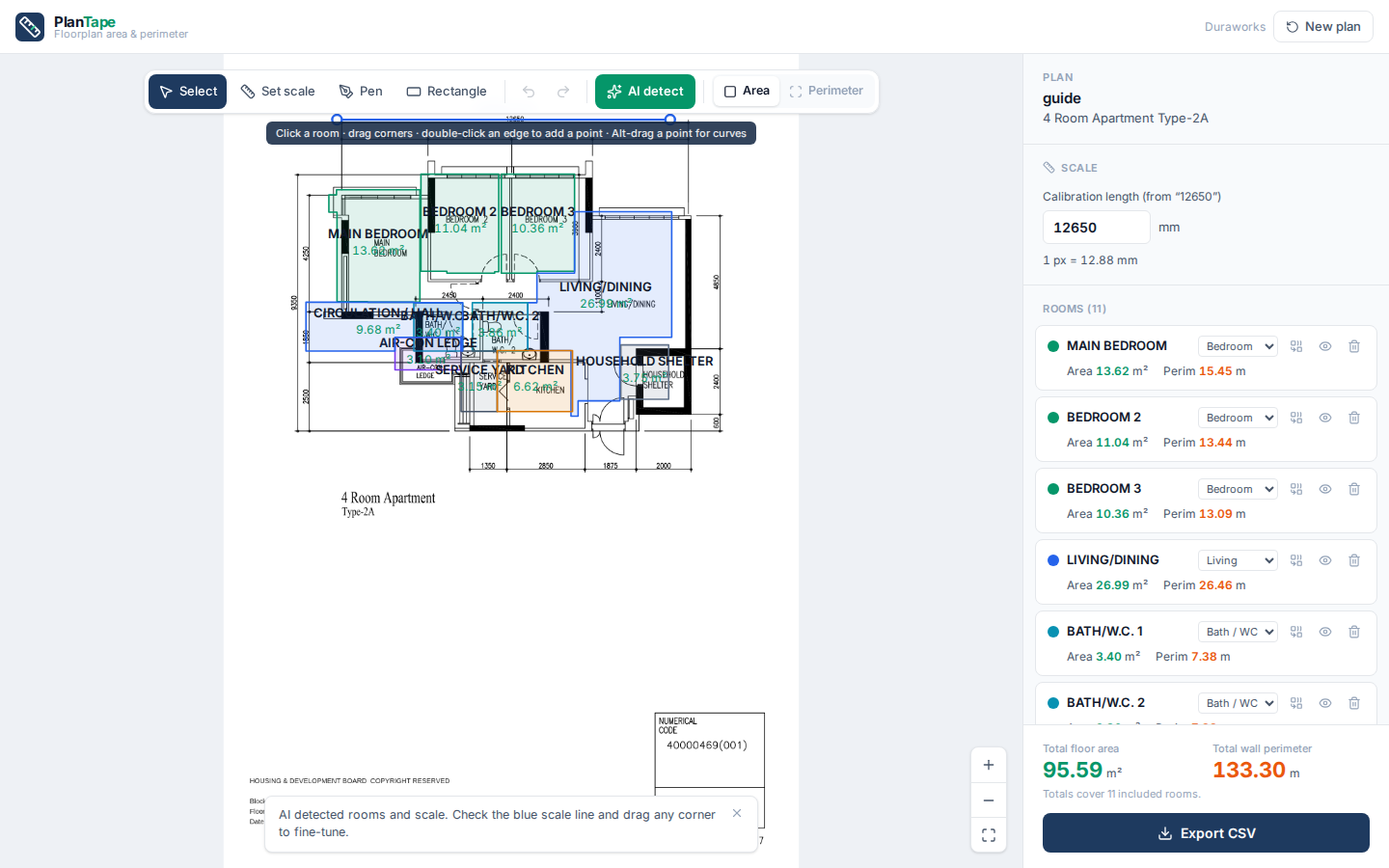

Detection takes roughly 20–60 seconds — the button shows a live counter. When it finishes, every room is outlined and labelled with its area, and the room list on the right shows both area and perimeter per room, plus totals at the bottom.
3Verify the scale — most important step
Every number comes from one thing: the blue calibration line and the length you tell PlanTape it represents. The AI anchors it to a printed dimension automatically, but you should check both ends sit exactly on the dimension ticks. To redo it yourself:

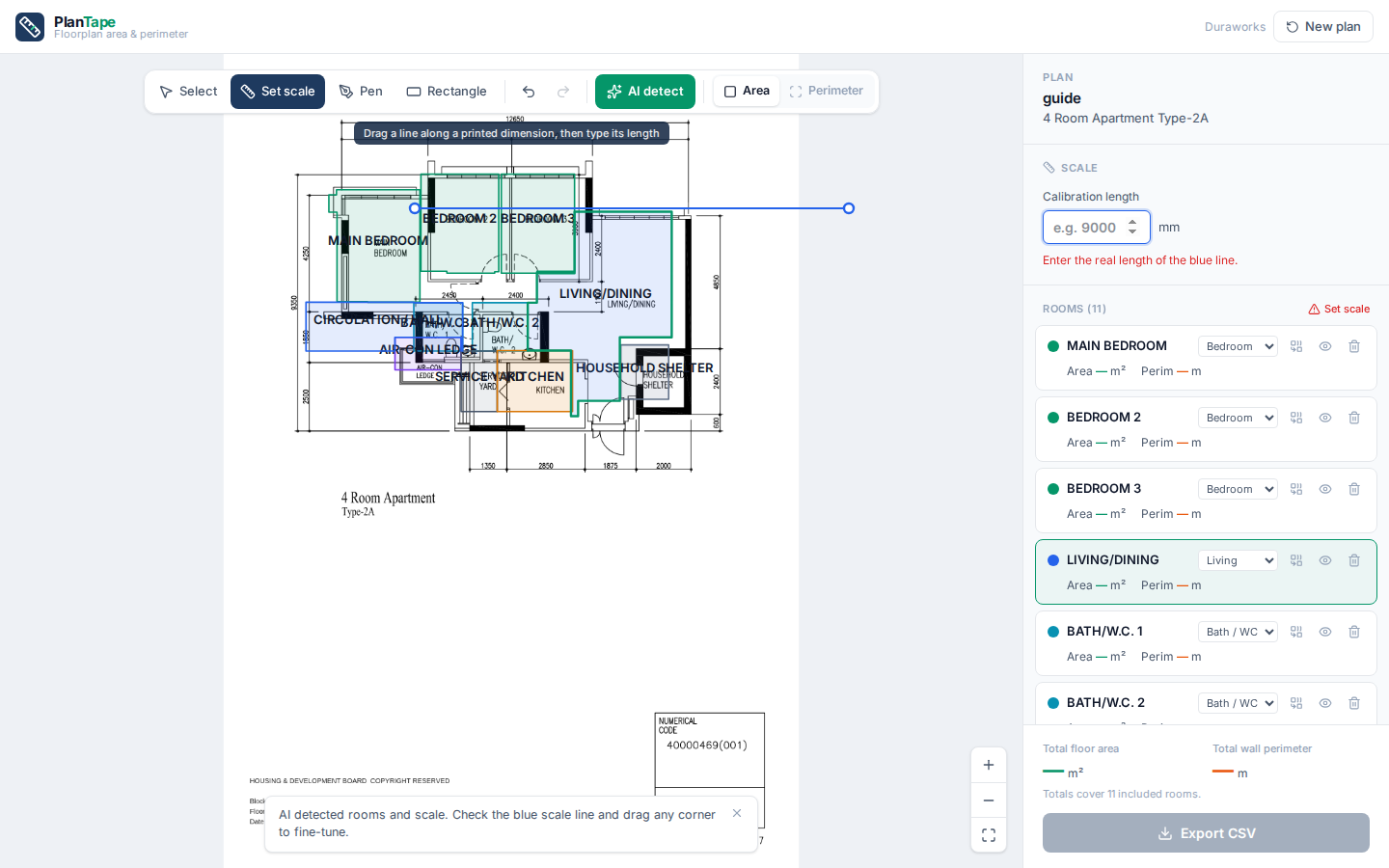

- Click Set scale in the toolbar (or press S).
- Drag a line along the longest printed dimension you can find — end tick to end tick.
- The length box focuses automatically — type the printed value in mm (e.g. 12650) and you're done. All areas update instantly.
4Fix room shapes

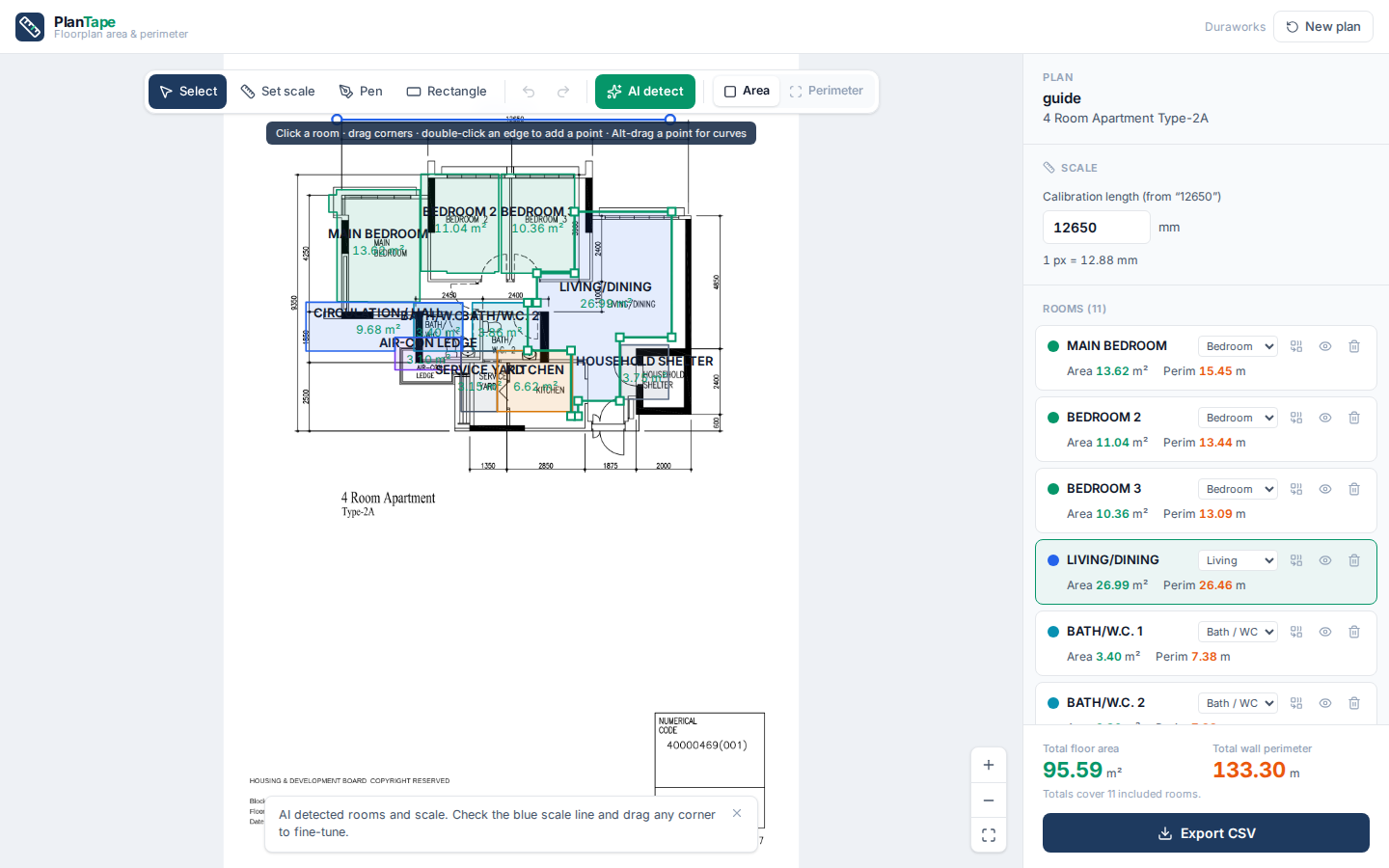

Click a room with the Select tool (V) and its corners appear as small squares. It works like Illustrator:
| To do this | Do this |
|---|---|
| Move a corner | Drag it — it snaps to align with nearby corners (pink guide lines) |
| Add a corner | Double-click on the room's edge where you want it |
| Remove a corner | Double-click the corner |
| Curved wall | Alt-drag a corner to pull out curve handles; drag a handle to bend |
| Nudge precisely | Click a corner, then arrow keys (Shift = ×10) |
| Move the whole room | Drag the room's body while it's selected |
| Undo any mistake | Ctrl+Z (redo: Ctrl+Shift+Z) |
5Add missing areas & merge
If the AI missed a corridor or bay, don't fight the polygon — add a shape and merge it:
- Rectangle tool (R): drag a box over the missing floor. For odd shapes use the Pen (P): click each corner, click the first point again to close (click-drag while placing a point makes a curve).

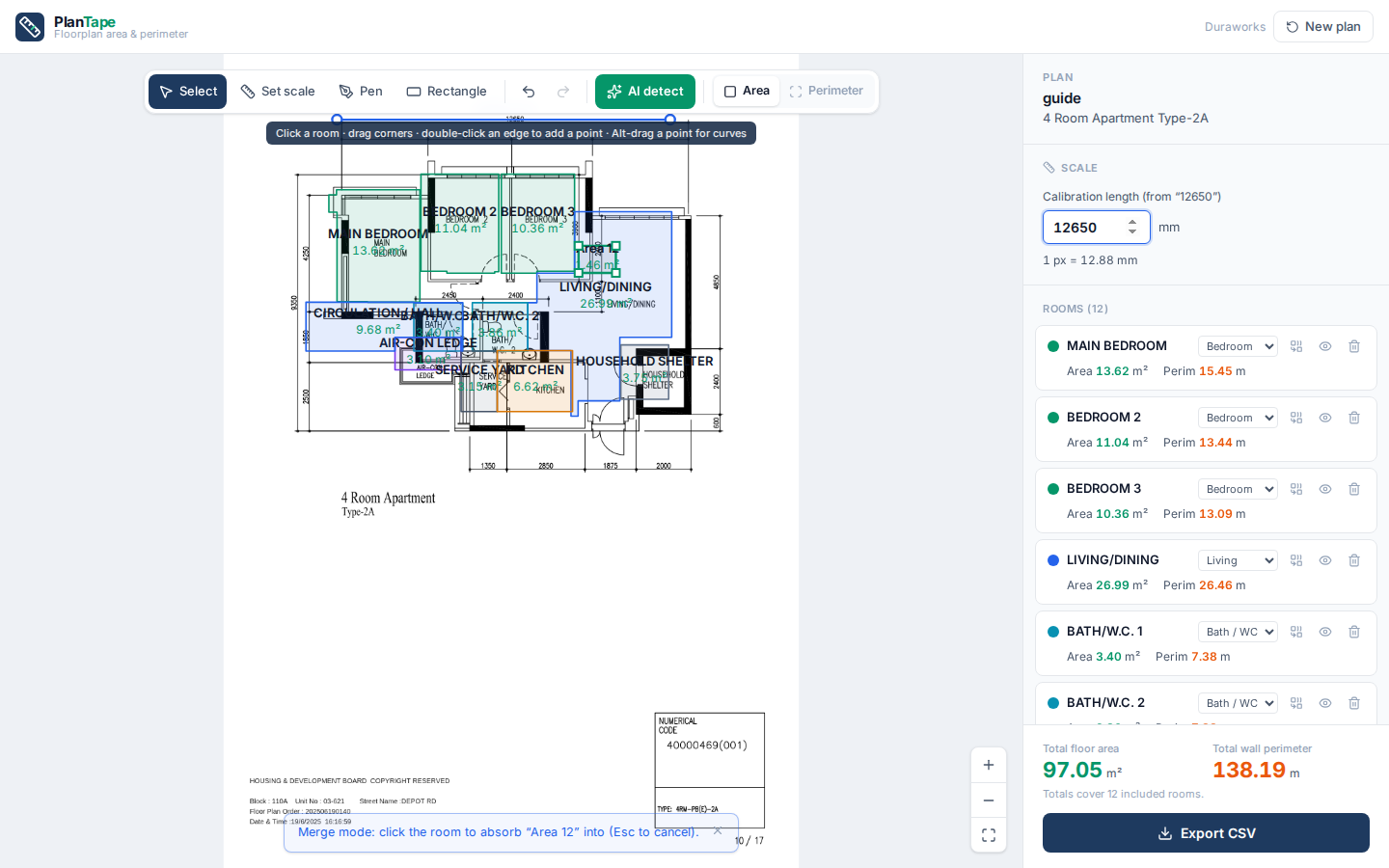

- In the room list, click the merge icon (⧉) on the new shape's row.
- Click the room that should absorb it. The two become one outline; overlap is not double-counted.
6Area vs Perimeter view

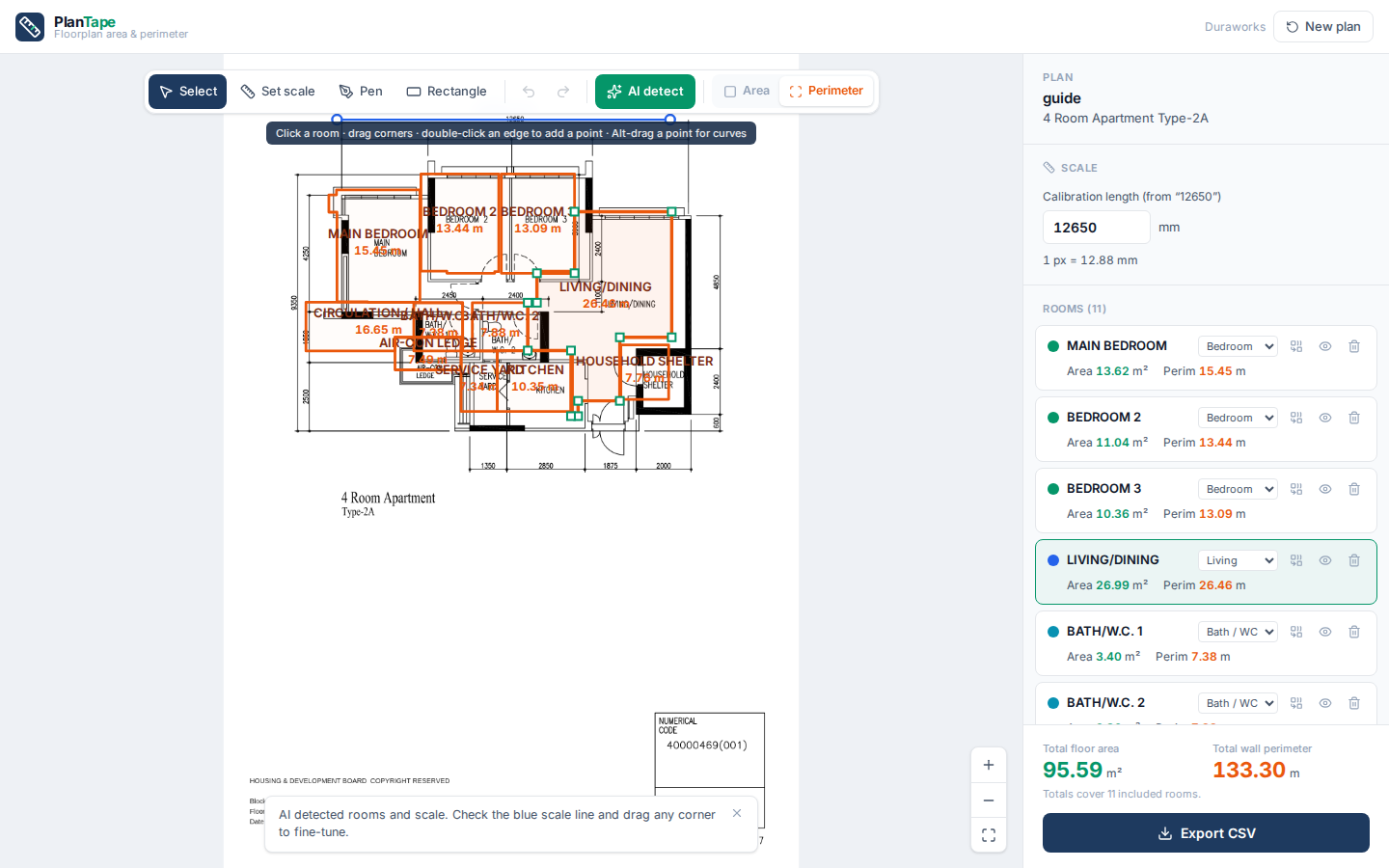

The toggle at the right end of the toolbar switches what the plan shows: Area shades each room with its m², while Perimeter draws bold orange outlines with each room's internal wall perimeter in metres — the view for skirting and wall-finish quotes.
7Export
Export CSV (bottom-right) downloads a spreadsheet with every room's area and perimeter plus the totals for included rooms. Rooms you've hidden with the eye icon are listed but excluded from totals.
8Accounts, saved plans & pricing
You can try PlanTape without an account — one free AI detection to see it work on your own plan. After that, sign in (Google, or email + password) to keep going:
- Free — 3 AI detections per month, plans saved automatically and listed under My plans so you can close the browser and resume later.
- Pro — S$28/month — 28 AI detections per month, saved plans and CSV export included. Upgrade from the user menu (top-right); manage or cancel any time via Manage billing.
Editing, measuring and exporting plans you've already detected never costs a detection — the quota only counts AI detection runs. If a detection fails, it isn't counted.
Shortcuts
| Key | Action |
|---|---|
| V / S / P / R | Select · Set scale · Pen · Rectangle |
| Ctrl+Z / Ctrl+Shift+Z | Undo / Redo |
| Enter / Esc | Close / cancel a Pen drawing (Esc also exits merge mode) |
| Arrow keys (+Shift) | Nudge the selected corner 1 px (10 px) |
| Mouse wheel | Zoom (the +/−/fit buttons are bottom-right) |
